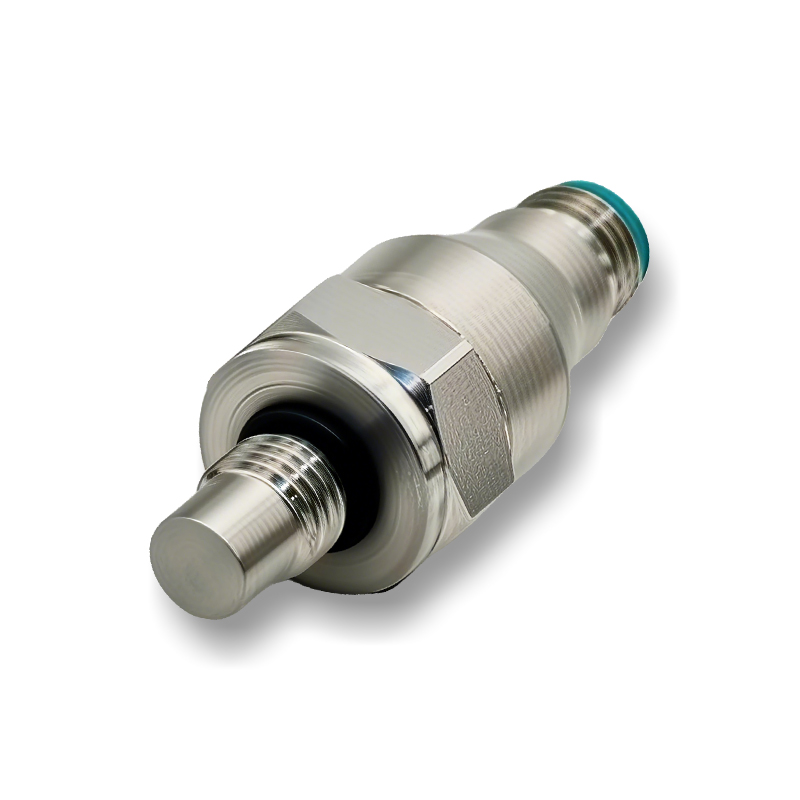

| PARAMETERS | MIN | TYP | MAX | UNITS | NOTES |
|---|---|---|---|---|---|
| Accuracy (combined non linearity, hysteresis, and repeatability) | -0.5 |
±0.25 |
0.5 |
%F.S. BFSL | @ 25°C, > 5.0MPa |
| Zero Error | -0.5 |
±0.25 |
0.5 |
@ 25°C | |
| Full Scale Error | -0.5 |
±0.5 |
1.0 |
@ 25°C | |
| Isolation (Body to any Lead) | 100 | MΩ | @250VDC | ||
Pressure Cycles |
1X107 | 0~FS Cycles | |||
| Proof Pressure | 2X | Rated | |||
| Burst Pressure | 3X | 20k psi | Rated | ||
| Long Term Stability (1 year) | -0.25 | 0.25 | %F.S | ||
| Total Error Band | -2.0 | 2.0 | %F.S | Over compensated temp range | |
| Compensated Temperature | -10 | 70 | °C | ||
| Operating Temperature | -40 | 120 | °C | ||
| Storage Temperature | -40 | 125 | °C | ||
| Load Resistance (RL) | RL > 100k | Ω | Voltage Output | ||
| Load Resistance (RL) | < (Supply Voltage-9V) / 0.02A | Ω | Current Output | ||
| Current Consumption | 10 | mA | Voltage Output | ||
| Rise Time (10% to 90%) | <2ms (Voltage Output); <3ms (Current Output); Without Snubber | ||||
| Pressure Port Material | 17-4PH+SST304 or 17-4 Integral Screw | ||||
| Shock | 50g, 11msec Half Sine Shock per MIL-STD-202G, Method 213B, Condition A | ||||
| Vibration | ±20g, MIL-STD-810C, Procedure 514.2-2, Curve L | ||||
